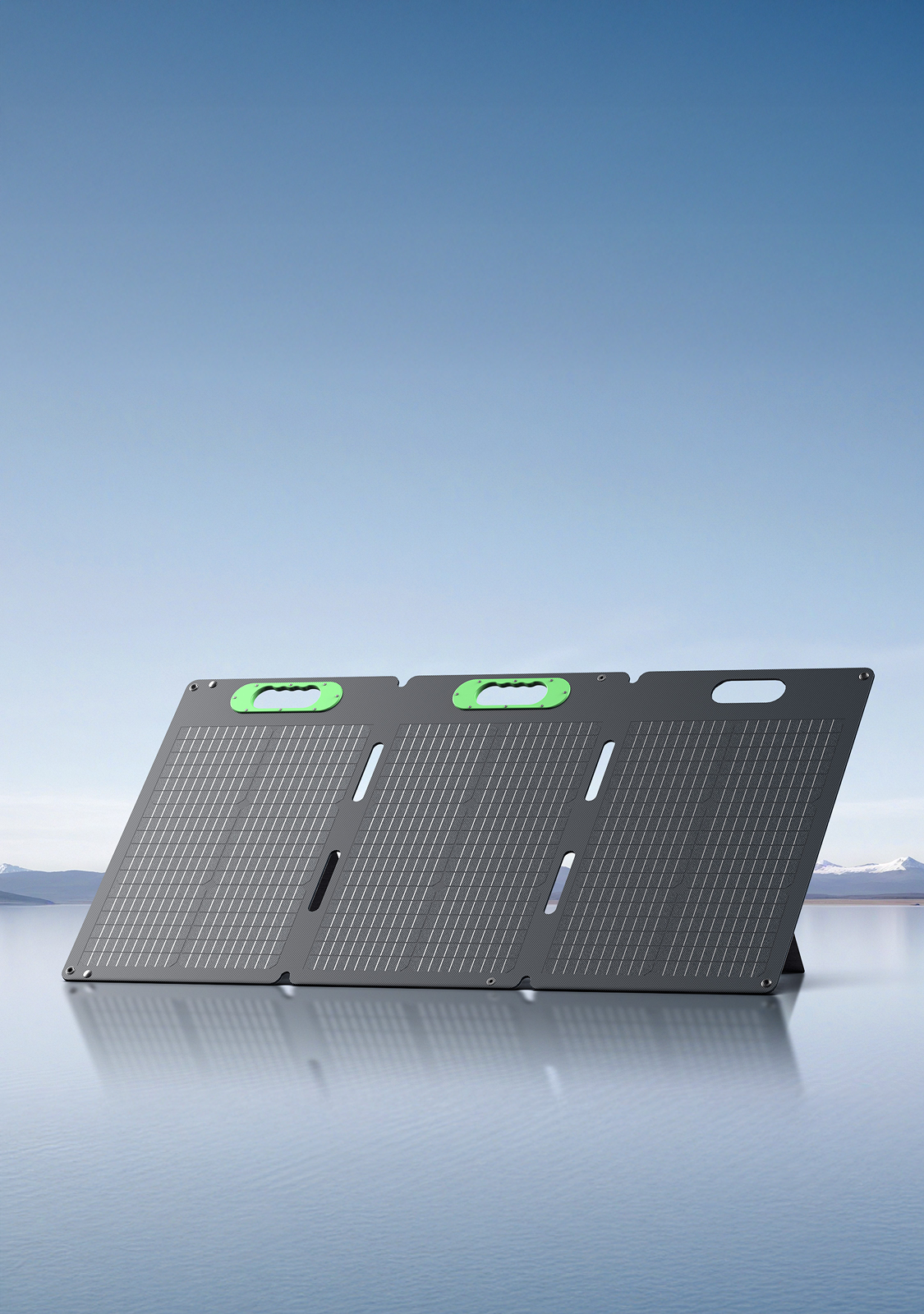

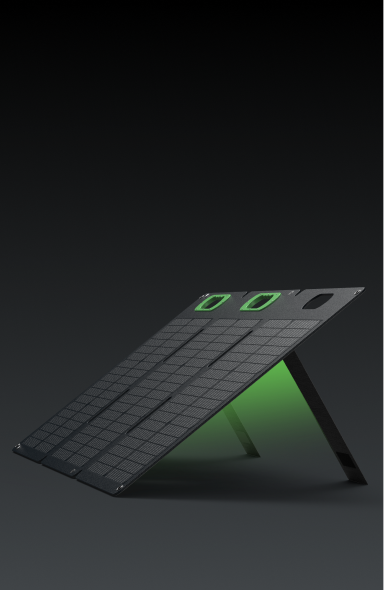

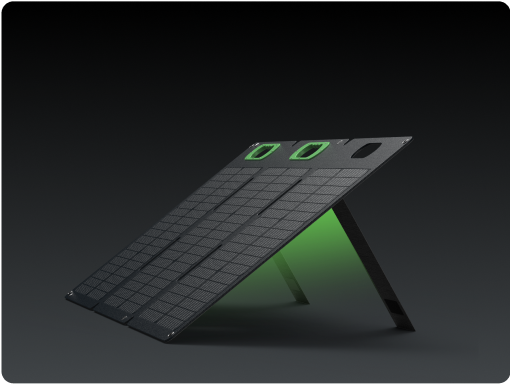

Yoshino 2*SP100 - 100W Solar Panel

Yes, it will, but may at a lower recharge rate.

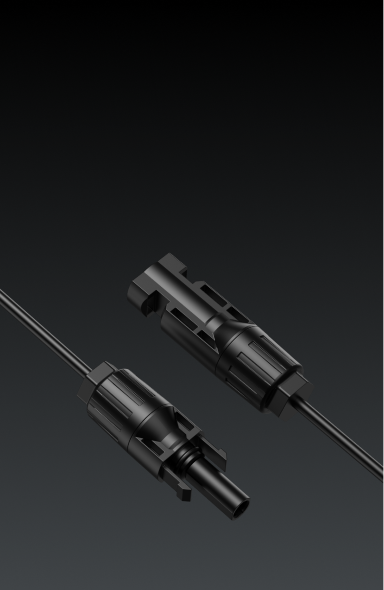

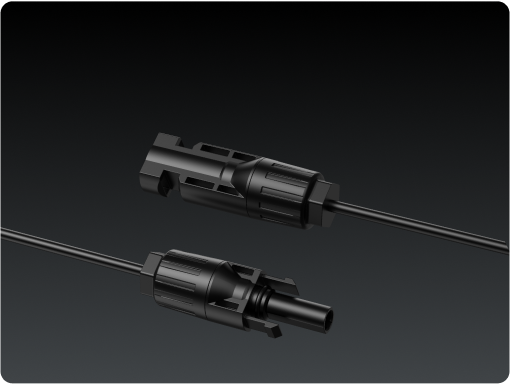

The Solar Connector is MC4.

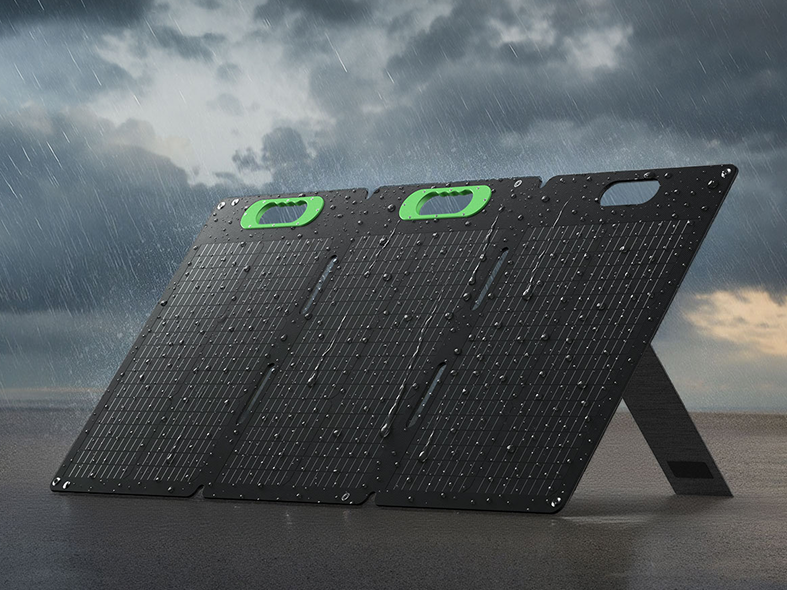

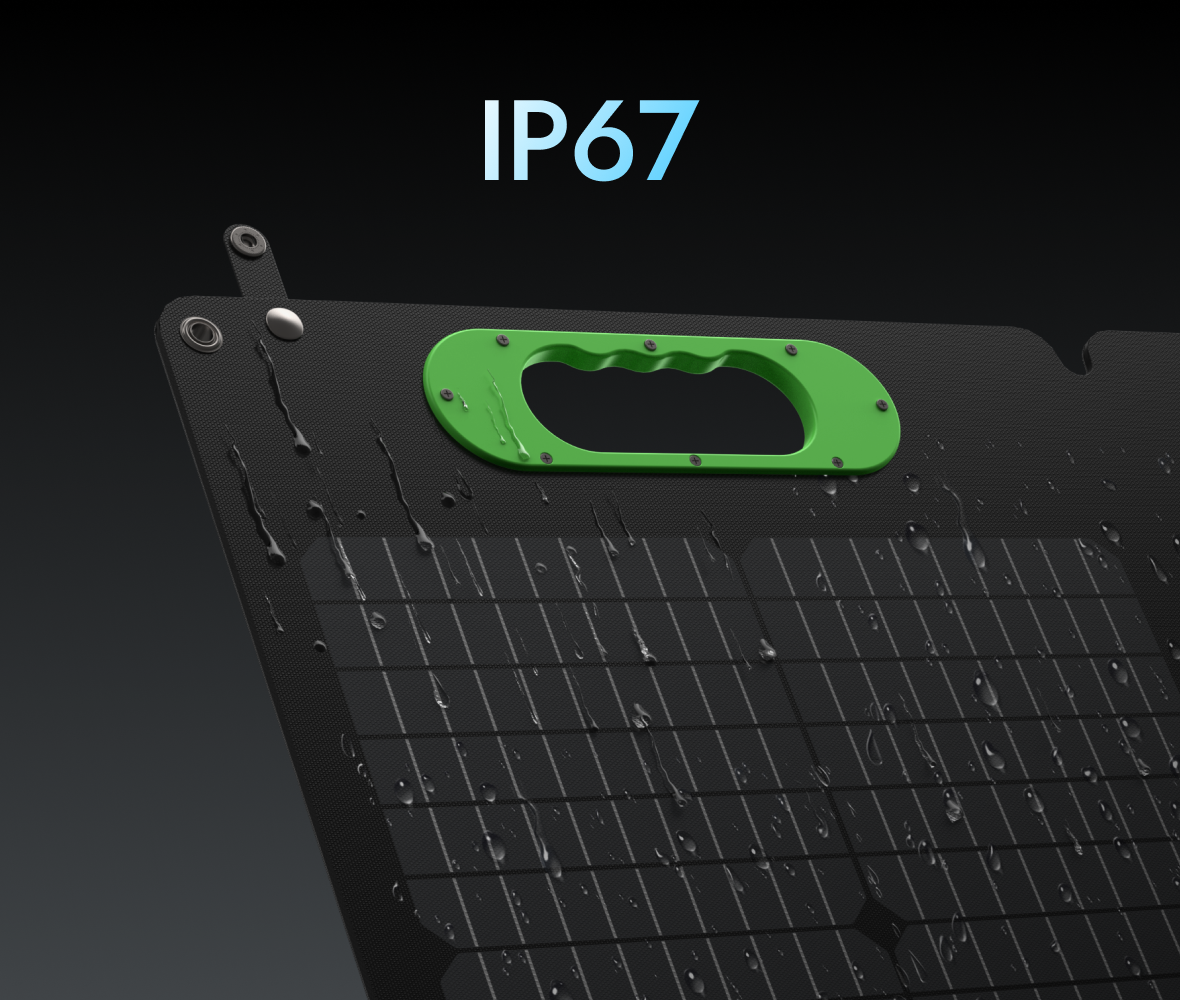

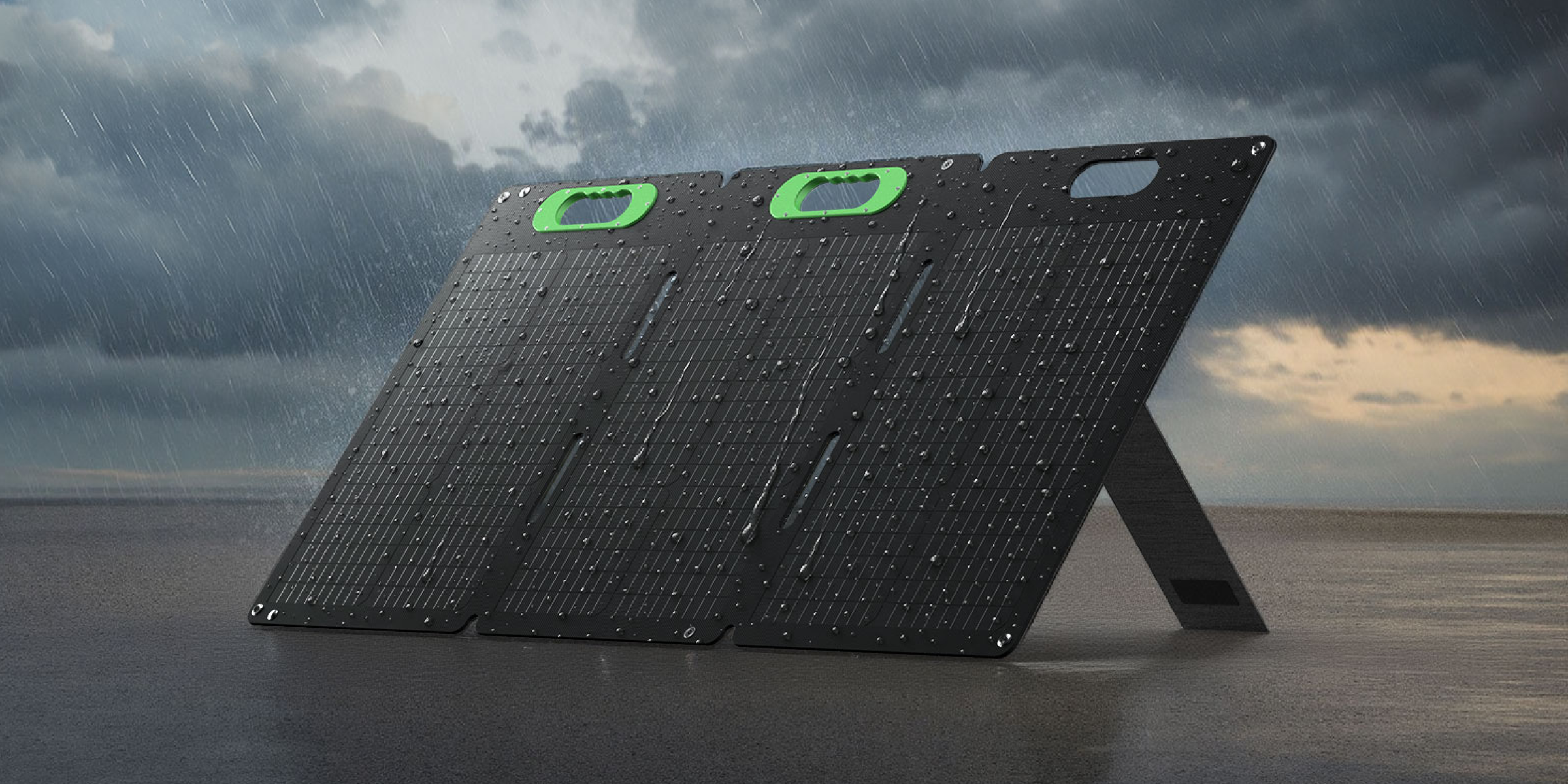

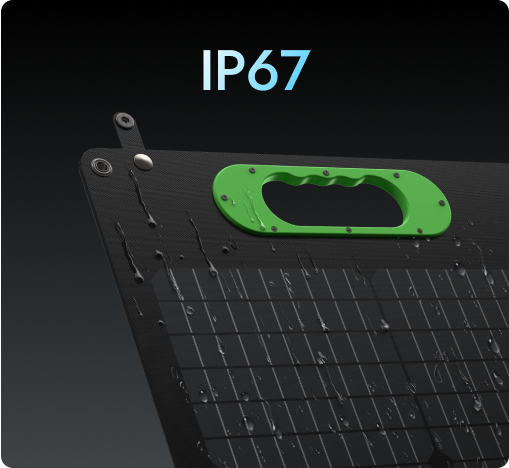

Yes, they are IP67 dust and water resistant.

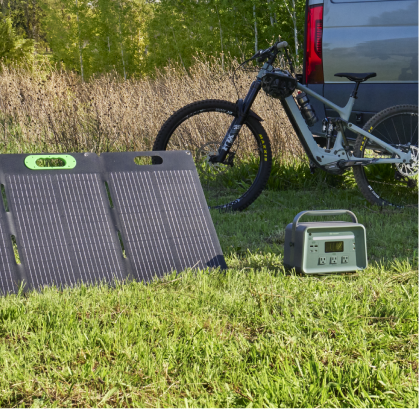

Yoshino solar panels can be used with other power stations if the connectors and voltage specifications are compatible.

The serial number can be found on the label of the product packaging box.

Do not leave the solar panel connected all the time. Be sure to disconnect the charging cord when not in use, such as during rainy weather or at night.The reasons are as follows:

1. In rainy weather, water can accumulate in the port, which may damage the device or pose a safety hazard.
2. In the morning, at night, or on cloudy days, solar panels generate less power, which prevents them from fully charging the portable power station and causes the device to start up with just a small amount of power.

If this condition continues, the power supply will constantly drain, causing overvoltage and potentially damaging the internal circuitry of the portable power station. It is important to disconnect the solar panel during thunderstorms, when the risk of overvoltage is particularly high.

The amount of power generated by a solar panel varies depending on weather conditions, sunlight intensity, installation conditions (direction, angle, surrounding environment, temperature), and panel contamination.

SP100: Approx. 50W-85W

SP200: Approx. 110W-160W

The above figures are average power generation figures on sunny days.If the above figures are low during use, please check the installation environment, connection status, and panel contamination.

Please check the following:

1. Solar panel angle and installation location

Make sure the panel receives sufficient direct sunlight and is installed at the appropriate angle. Power generation may be significantly reduced, especially in areas with a lot of shade or clouds.

2. Check input limit

If the solar panel's input is not displayed, it may be caused by insufficient sunlight or partial shading. Please make sure there is sufficient sunlight.

3. Plug connection status

A loose plug may prevent proper connection. Please make sure the MC4 to XT60 cable is firmly inserted all the way.

4. Operating power

The portable power station consumes approximately 10W to a maximum of 25W in standby mode. Low-output power generation may cause standby consumption and charging may not proceed.To ensure sufficient charging, it is important to ensure sufficient power generation in an environment with good sunlight conditions.

5. AC charging

Please check that AC charging is working properly.If the problem persists after checking the above steps, it may be due to a manufacturing defect. In this case, please contact customer support.

Please try the following steps.

1. Select the device you want to update.
2. Select the settings button in the upper right corner.
3. Select [App Version].
4. Select [EMS].
5. If there is firmware to update, select [Update].

This update may take some time to complete.If "No Updates Available" is displayed, please rest assured that you are already up to date.

If the cables and plugs of other manufacturers are compatible with our product's "XT60" plug standard, then they can be connected, but there are some precautions to take.

We recommend connecting our own solar panels.

Please note that malfunctions caused by connecting products from other manufacturers are not covered by the warranty.The charging power (wattage) will be displayed on the LCD screen only if the third-party solar panel meets our product specifications.

Yes. The B330 and B660 can only connect one SP100 (up to 100W). For the B2000 and B4000, up to three SP200 (up to 600W) can be connected in series.

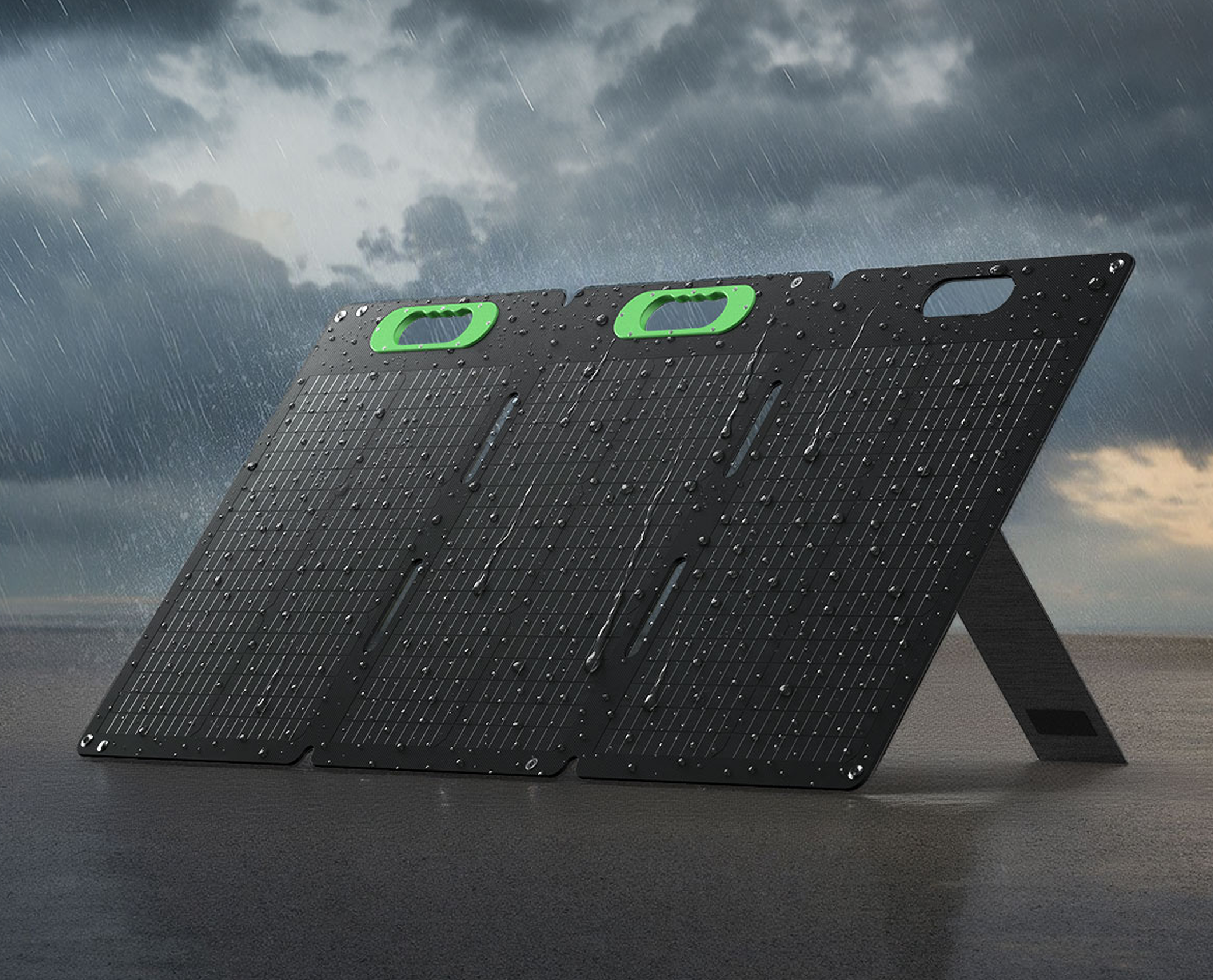

No, the solar panels are water-resistant, but please note that the connector parts are not water-resistant.

While it is possible to use the SP100 and SP200 simultaneously, we do not recommend connecting them in series as they will only operate at the minimum output power. This is because connecting them in series will limit the overall output to match the lower-output solar panel. When connecting them in series, we recommend using solar panels with the same output. For example, if you connect one SP100 and one SP200 in series, you can generate a maximum of 200W.

Since the cells inside a panel are connected in series, it’s really important that all the panels — or all parts of a single panel—stay in direct sunlight. If even one part gets shaded suddenly, like from a tree or cloud, the whole solar input might drop or even be cut off completely. You might also need to check if the MPPT has triggered an overheat warning. If that’s the case, just unplug the solar panel and let the power station cool down for a bit before reconnecting.
